WPL RC Official Store

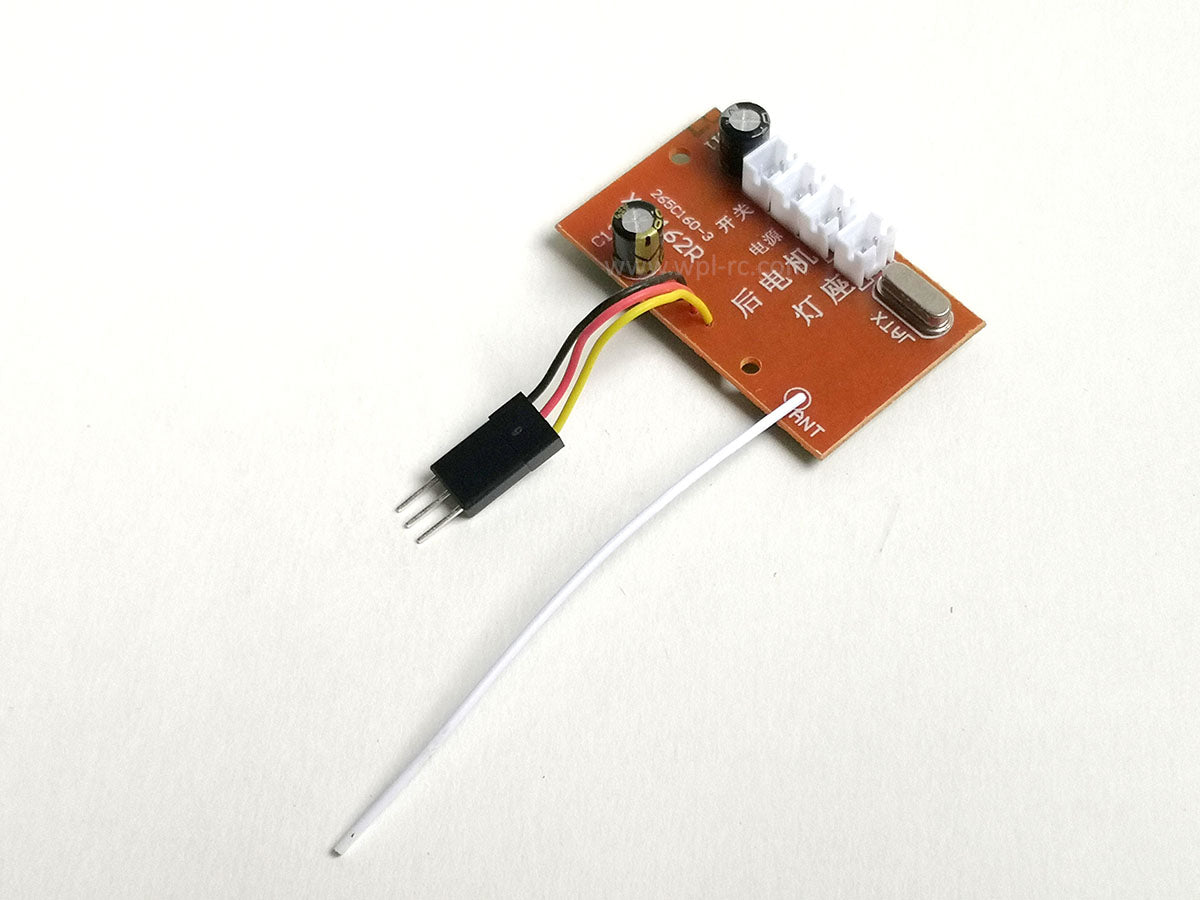

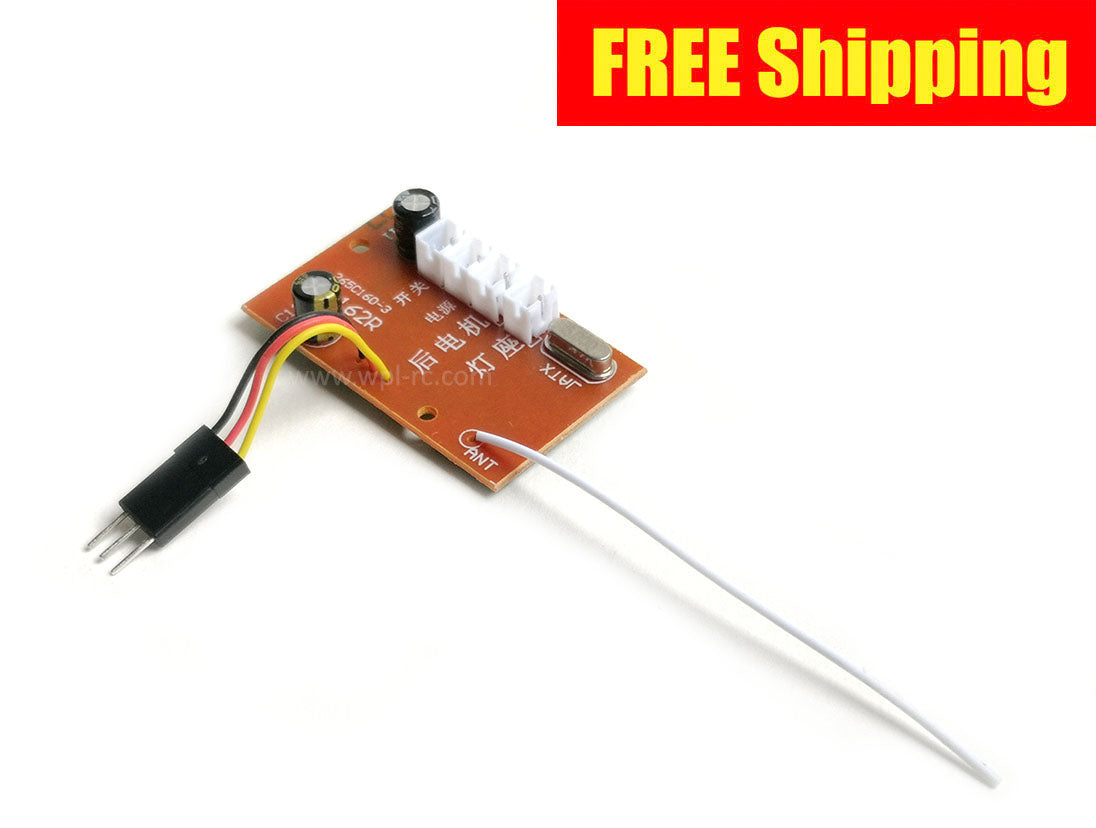

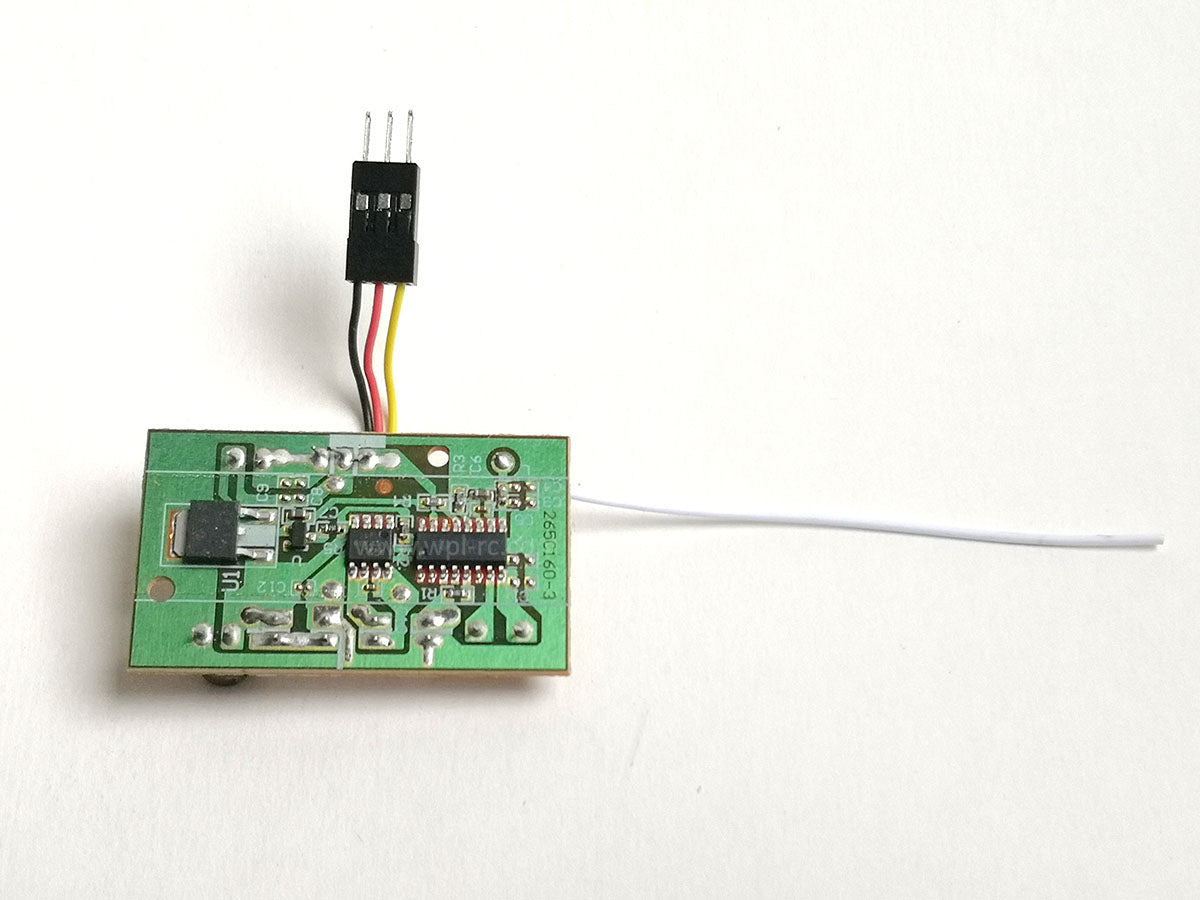

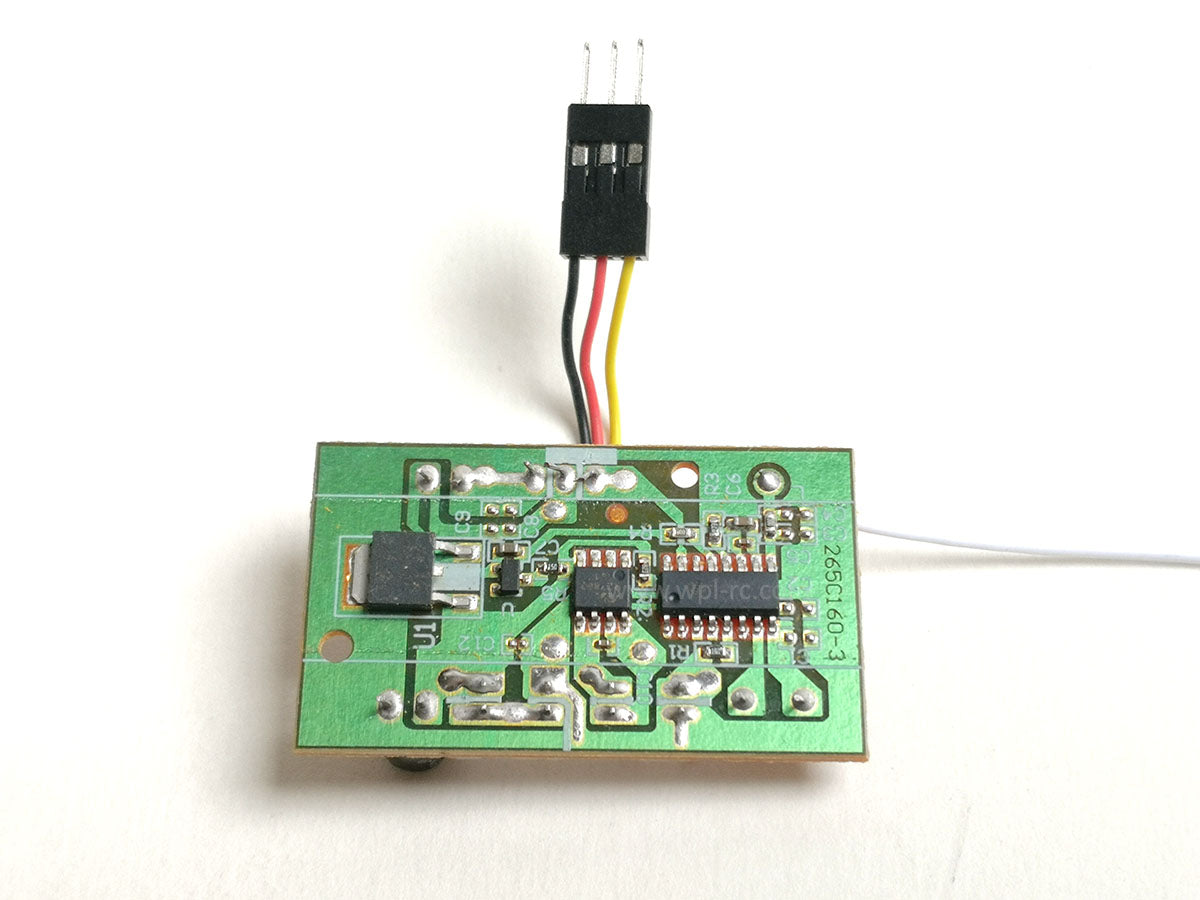

Proportional Receiver - Built in Brushed ESC

Name: Proportional Receiver - Built in Brushed ESC
Brand: WPL RC Official Store
SKU: ABC026
Price: 10.9 USD
Availability: InStock

$10.90 USD

In offerta Esaurito

Spese di spedizione calcolate al check-out.

Varianti di prodotto

Quantità

Proportional both steering and throttle.

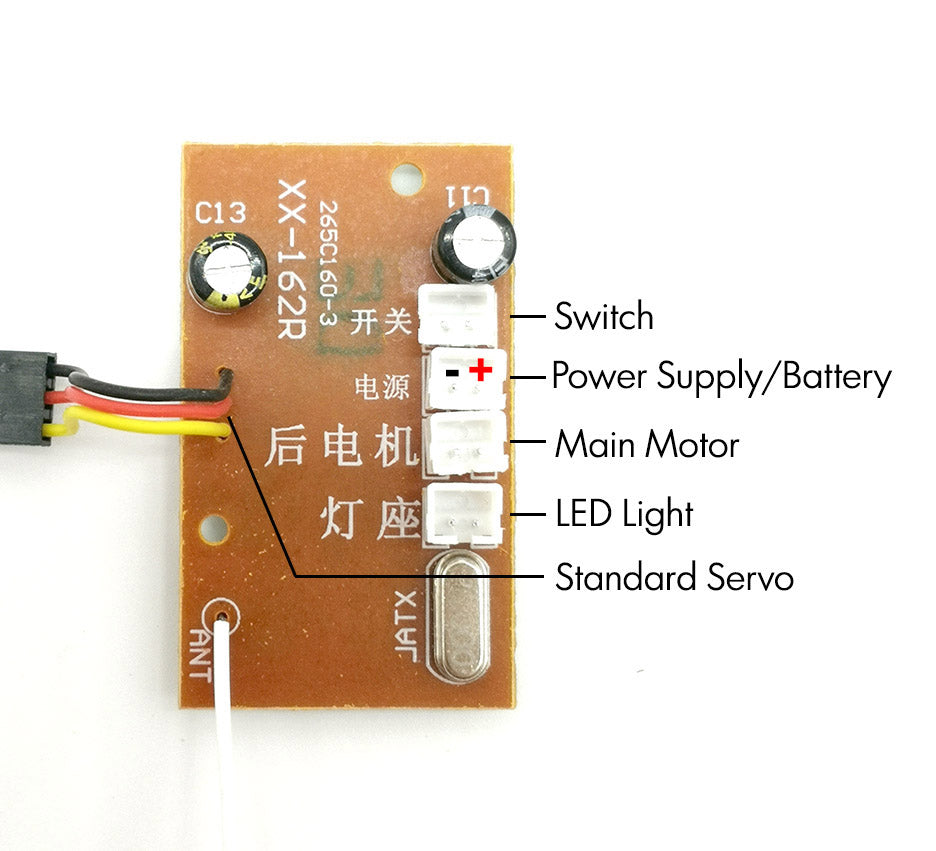

* formally known as XX-162R receiver

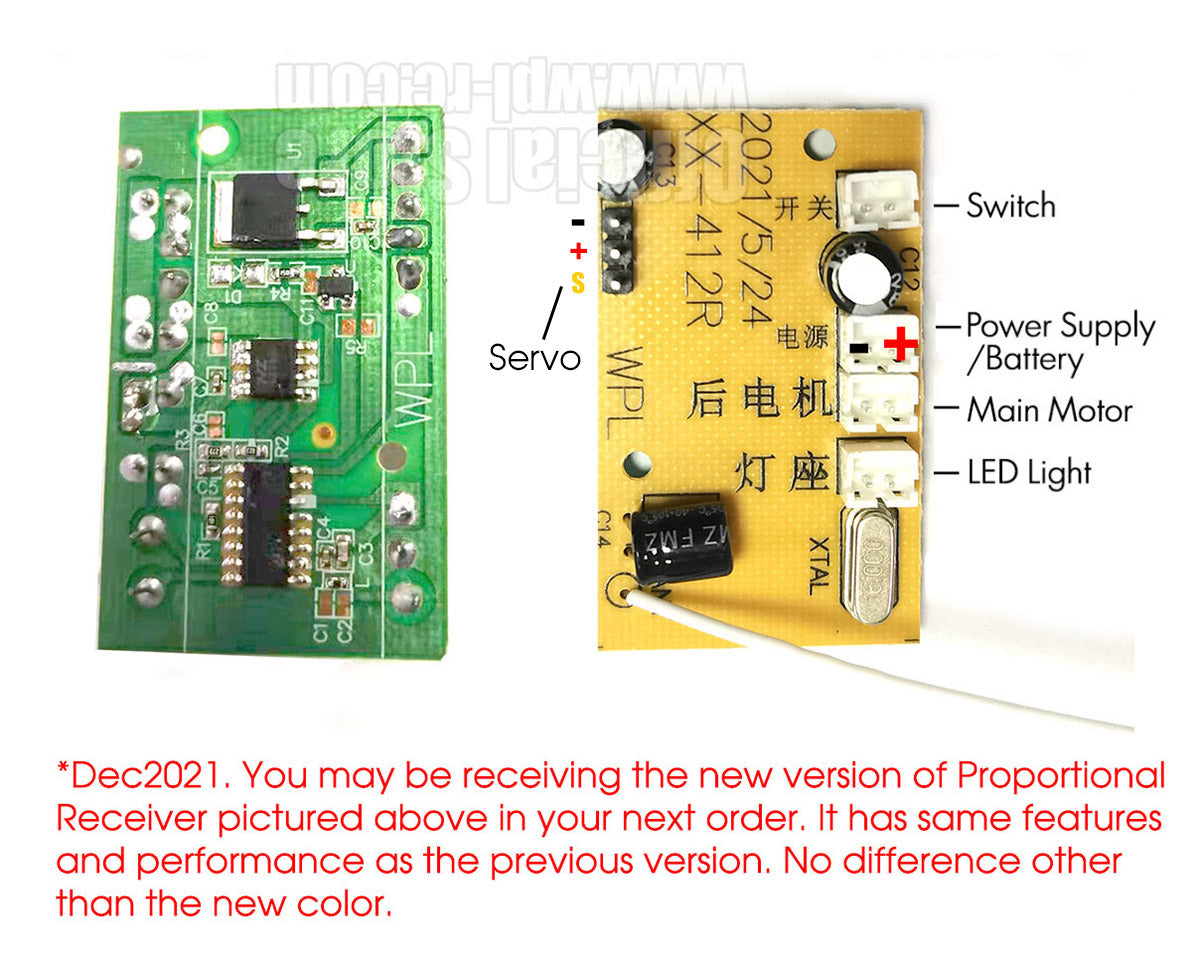

* You may receive the newer version with XX-412R, XX-532R or XX-738R numbering

* Does not work with Non-proportional Remote
* You need Proportional Remote together if you don't have one - Link here

* Works with standard Servo with 3 wires lead.

* Works with 2S Li-Ion or LiPo battery only. Does not work with 6V NiCd from non proportional RTR

What is Proportional?

- receiver output according to how much you input on remote, if you turn the steering little, the car's steering moves a little, the same as throttle

This is a good upgrade if you bought a non-proportional RTR

* factory improvise the receiver from time to time so you may receive one that does not look the same as the photo but rest assured it's always better than the previous version.
* meant for upgrading your non-proportional RTR of WPL to proportional control.

* this does not work with Non-WPL electronics/plugs. You should always check for polarity before turning on

* not compatible with D12 or D42 remote

* do not use connectors from MN/Fayee, they are reversed, you risk frying your board!

Instruction manual - Here

More information about receivers numbering - Here

Update,
